Vi-Link HD SDI equipment: The DL125 is a fiber optic digital Transmitter/multiplexer for transmitting high quality broadcast video 3G HD SDI signal and 100/1000/10000M Ethernet link over a single mode fiber optic cable.
The DL125 is compatible with all SMPTE rates: SMPTE259M SDI from 143 to 360 Mbps, SMPTE344M 540Mbps, SMPTE292M HD-SDI 1.485 Gbps, SMPTE372M Dual Link HD-SDI 2,97 Gbps, SMPTE424M Dual Speed 3G-SDI 2.97 Gbps. The 100/1000/10000M Ethernet channel supports store and data forwarding with extremely low latency. It is high-performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network.
The DL125 offers a fully serial digital video encoding/decoding of real time high quality digital video providing adjustment free operation over a wide operational range. Using automatic gain control and state-of-the-art multiplexing, combining with CWDM technologies for distances from back-to-back to 50 Kilometers, our digital signaling offers superior receiver output stability, which is unaffected by changes in fiber path attenuation due to aging or splicing points. The extended temperature capability of the DL125 satisfies very critical applications requiring high quality video performance with high reliability.

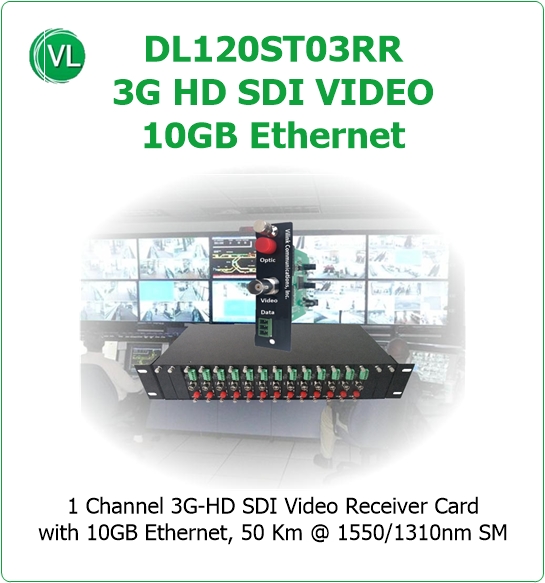

The DL125 is a rugged standalone compact unit and the DL120RR is a plug-in card of the VK2300 rack system. The VK2300 chassis can accommodate up to 10 hot-swappable plug-in cards with 2 power supplies. It is the direct replacement equipment for upgrading old analog video monitoring network to the high-quality HD video monitoring system.
Applications include Broadcast Video Production, Video Editing, Unmanned Aircraft Vehicle Days & Nights Monitoring Systems, ITS Intelligent Traffic System, Metro & Railroad Monitoring System, Homeland Security, Utility Management, Premise Networks, Military Hardened applications or anything requiring HD quality video performance.

Digital Broadcast Video Transmission
100/1000/10000M Ethernet Link
Single Mode Fiber With CWDM Technology
Real Time High Quality 3G-HD-SDI Video
Compatible with all SMPTE3G SDI Rates
– SMPTE259M SDI from 143 to 360 Mbps, SMPTE344M 540Mbps,
– SMPTE292M HD-SDI 1.485 Gbps, SMPTE372M, SMPTE424M
– Dual Link HD-SDI 2,97 Gbps, Dual Speed 3G-SDI 2.97 Gbps
Fully Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab standard
Auto-detection of half/full duplex transfer mode
Auto-negotiation of 100/1G/10GB Mbps rate and Auto-MDI/MDIX TX port
+12 VDC or 90~240 VAC (Rack card)
NEMA Temperature
