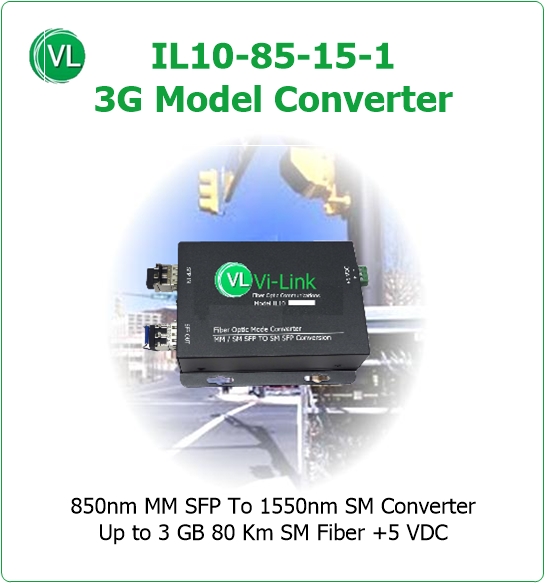

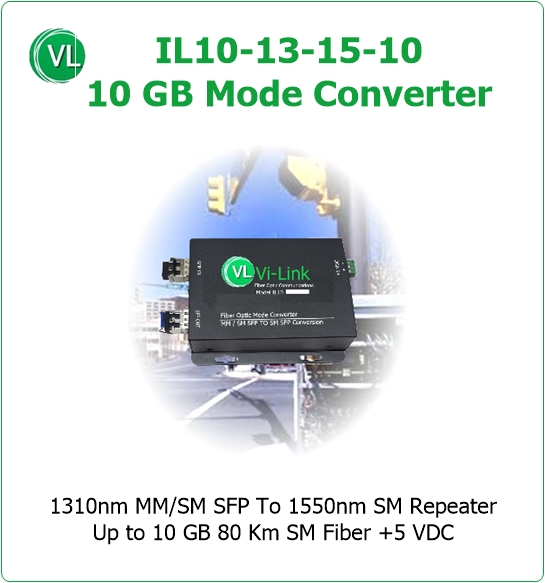

Vi-Link IL10 is an Multimode SFP to SFP Single Mode Converter/Repeater (OEO) designed to convert optical or electrical signals between two SFP modules. This unit provides various optical and electrical conversions such as multimode to single mode, single mode to single mode (repeater), copper Ethernet to fiber, 3G HD SDI video to fiber, RS-232 or RS-422 data to fiber. It is the most convenient and cost-effective solution for converting classic equipment protocols into modern fiber optic applications. Distance between the two locations can be up to 50 km with a high-power laser optic SFP module.
The IL10 can accept all digital signals from 1.25 GB to 10 GB from various communication devices through its SFP input and output ports such as GB Ethernet, 3G HD SDI Video, 2/4/8K HDMI video short range GB MM fiber link, SONET, SDH, FDDI, ESCON and … so on.
The IL10 standalone unit can be inserted into Vi-Link MC1400 chassis. Each MC1400 chassis can accumulate up to 14 IL10 units.
Applications include High-Speed Ethernet Networks, Large Data Center, Broadcasting Video productions, High-Speed Leased Fiber, 5G Telco, S Telco feeder, SCADA, SONET OC-1, OC-3, OC-12, OC-48, SDH STM-1, STM-4, STM16, DS3, E3, CEPT-1, FDDI, ESCON, HD-SDI, HDMI Video and many other standard or proprietary digital optical signals.

Fiber Optic Multimode to Single Mode Conversion
OEO Full Duplex Optical
LAN/WAN, SAN High-Speed Signals
Bandwidth From 1.25 Gbps to 10 Gbps
Transmitting Data Up to 50 Km
100% Protocol Independent
Multimode to Single Mode
Single Mode to Single Mode
GB Ethernet to Fiber
3G HD SDI Video to Fiber
RS-232 or RS-422 Data to Fiber
Plug and Play
No Bandwidth Penalty
